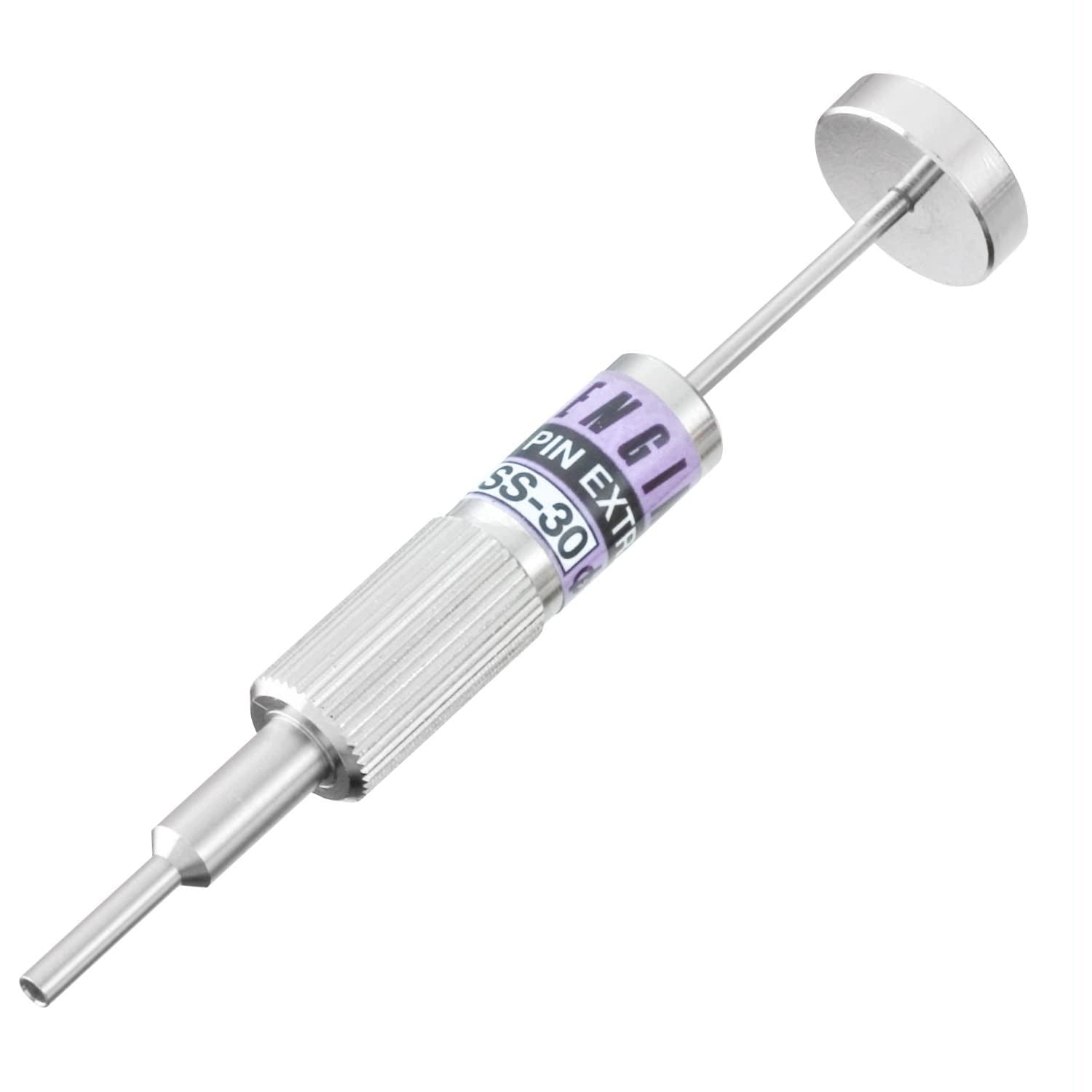

ENGINEER Inc.'s SS series is a pin extractor specialized in ejecting pins from socket terminals and is applicable to both female and male terminal housings.
Very easy steps to extract the pin: insert a sleeve into socket terminal, then press the ejector.

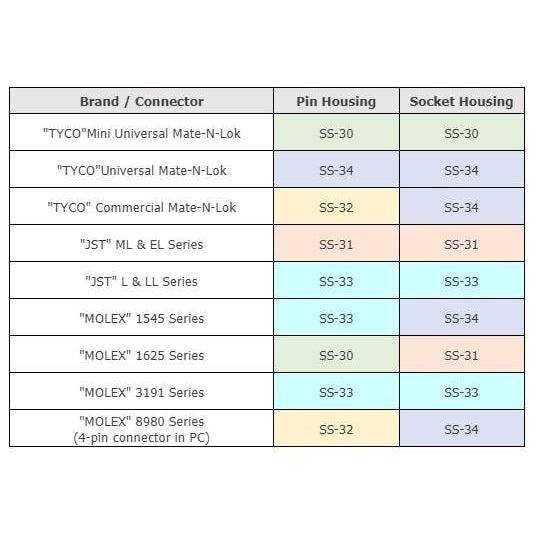

SS-30 is applicable to TYCO Mini Universal Mate-N-Lok (pin & socket housing), and MOLEX 1625 Series (pin housing). Please note that the mentioned information is just a reference and it may not work well on some models.
Insert the extractor sleeve into the socket terminal. Make sure to insert deeply or the extractor cannot hold the housing lance.
When insertion completed, push forward the ejector on the grip end, and you can remove the pin.
- Material: SUS303 stainless steel
- Inner diameter of sleeve: φ1.9mm
- Outer diameter of sleeve: φ2.5mm

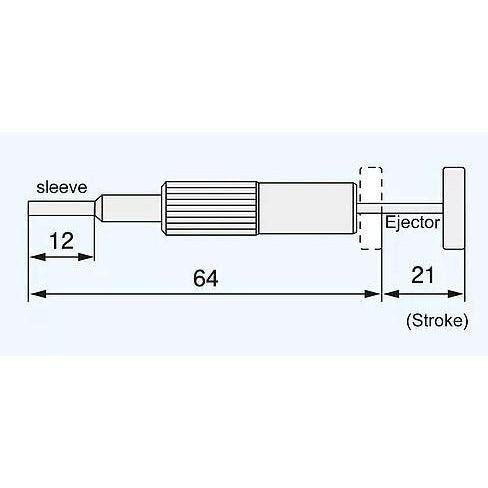

- Size: 85mm
- Weight: 24g
- Made in Japan
