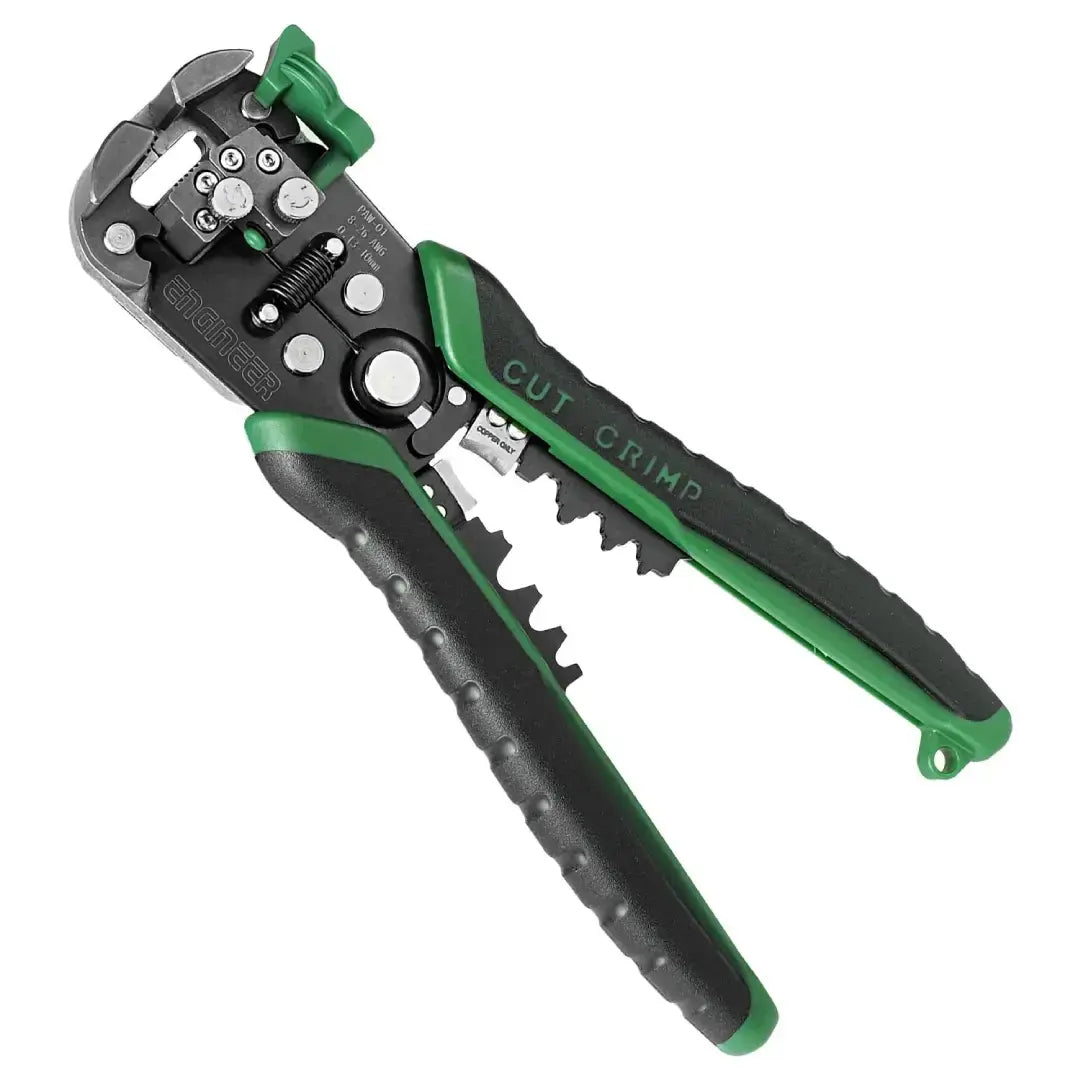

The Engineer Paw-01 is a heavy-duty automatic wire stripper designed to quickly and easily remove insulation from wires ranging from ultra-fine AWG30 to thick AWG8 cables. The automatic wire diameter adjustment system automatically grips different wire sizes, helping make wire stripping faster and easier during repetitive work. A fine adjustment knob lets you adjust the stripping strength for delicate or soft wires to help prevent damage.
You can strip wires in the middle or strip multiple wires at the same time for faster and easier work. The included strip gauge helps you set the length of insulation to be removed, while the built-in wire cutter adds extra convenience during electrical and repair work. The cutting blade is also replaceable for long-term use.
Compatible with general insulated wires, speaker cables, flat cables, parallel wires, and VCT cables, the PAW-01 is suitable for electrical installation, automotive wiring, cable processing, maintenance, and repair applications.
- Automatic wire diameter adjustment system for faster stripping work
- Compatible with wire sizes from 0.05–8.0mm² (AWG30–8)
- Holding force adjustment knob for precise stripping of fine or thick wires
- Supports middle stripping and simultaneous multi-wire stripping
- Integrated wire cutter with replaceable cutting blade
Adjust the holding force adjustment knob according to the thickness and type of wire before use. Set the desired stripping length between 6–18mm using the included strip gauge, then fully insert the wire into the stripping slot. Squeeze the handles firmly to automatically grip and remove the insulation cleanly without damaging the conductor. The tool can also be used for middle stripping and simultaneous stripping of multiple wires when working with compatible cables. Use the integrated cutting section only for suitable wire materials and sizes. Do not use on live electrical equipment, and always wear safety glasses during operation to protect against scattered insulation or wire fragments.
- Contents: 1 Engineer Paw-01 Multi Wire Stripper with adjustable strip gauge
- Materials: Durable carbon steel and alloy steel body with comfortable ABS and elastomer (TPR) grip handles

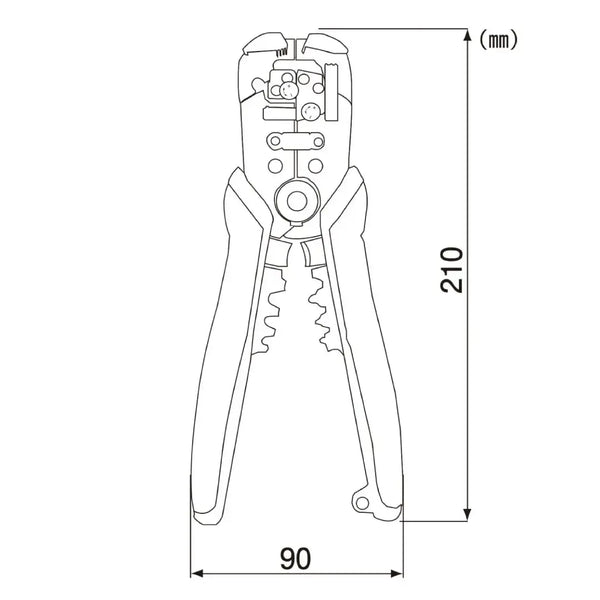

- Total Length: 210mm
- Compatible Wires: General insulated wires, speaker cables, parallel wires, flat cables, and multi-core VCT wires
- Compatible Wire Range: Supports wire sizes from 0.05–8.0mm² (AWG30–8)
- Stripping Length Range: Adjustable stripping length from 6–18mm
- Cutting Capacity: Built-in wire cutter compatible with wires up to Φ2.5mm
- Made in Taiwan
