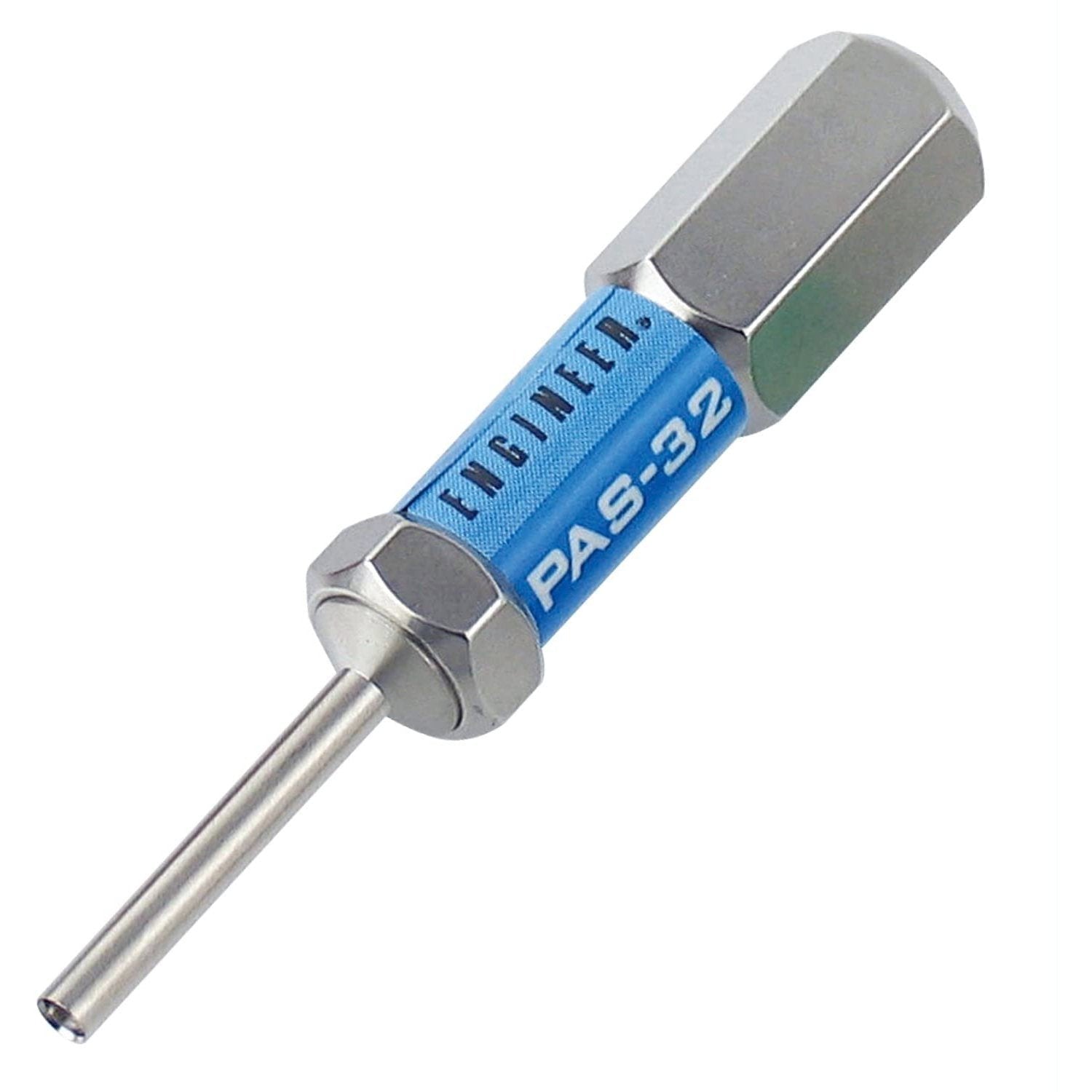

ENGINEER Inc.'s PAS series is a connector extractor literally suitable for extracting pin and socket contacts.
Contains an original built-in return spring that keeps injector pins inside the sleeve. It also prevents the ejector pin from causing damage and deformation while carrying or not using.

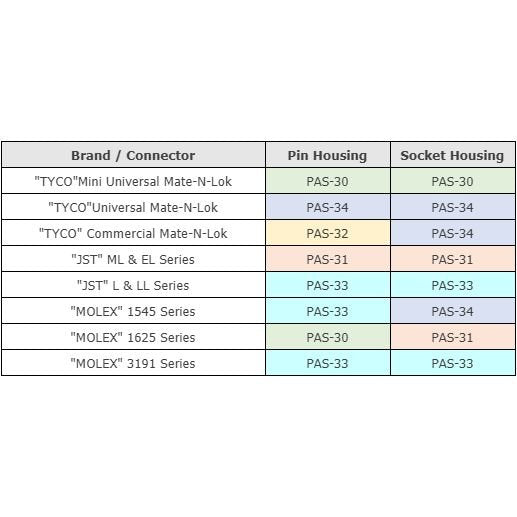

PAS-32 is applicable to TYCO Commercial Mate-N-Lok (pin housing). Please note that the mentioned information is just a reference and it may not work well on some models.
For the demonstration of this product, see here.
Insert the extractor sleeve into the contact. Make sure to insert deeply or the extractor cannot hold the housing lance.
When the insertion is completed, an ejector comes out from the grip end.
Push the ejector, and you can remove the connector pin.
- Material: SUS303 stainless steel
- Inner diameter of sleeve: φ2.4mm
- Outer diameter of sleeve: φ2.9mm
- Size: 62mm
- Weight: 20g
- Made in Japan
